Wuxi Jiuyuanqiang Metal Manufacturing Co., Ltd.

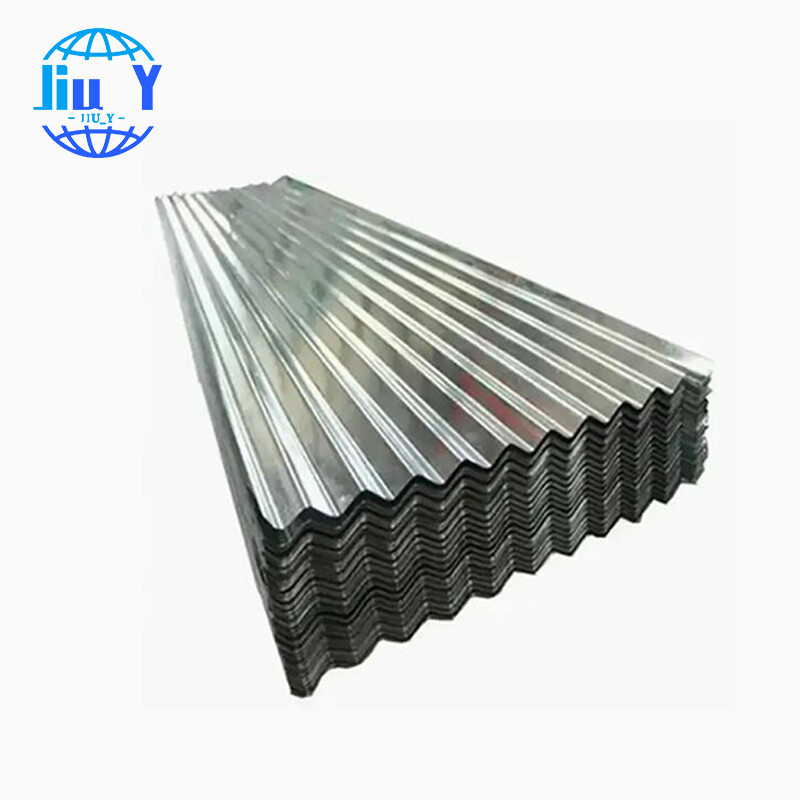

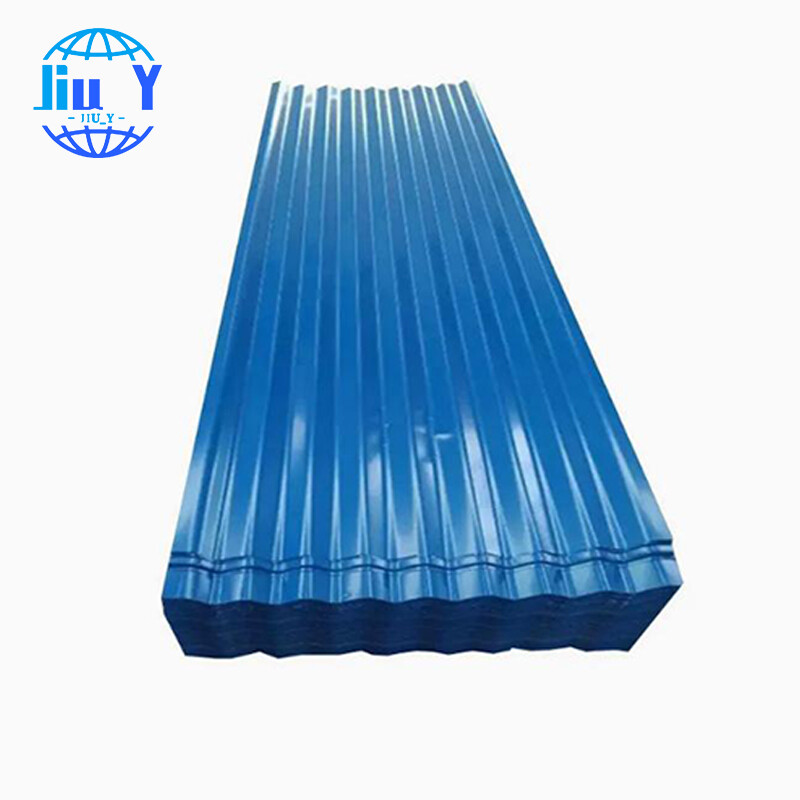

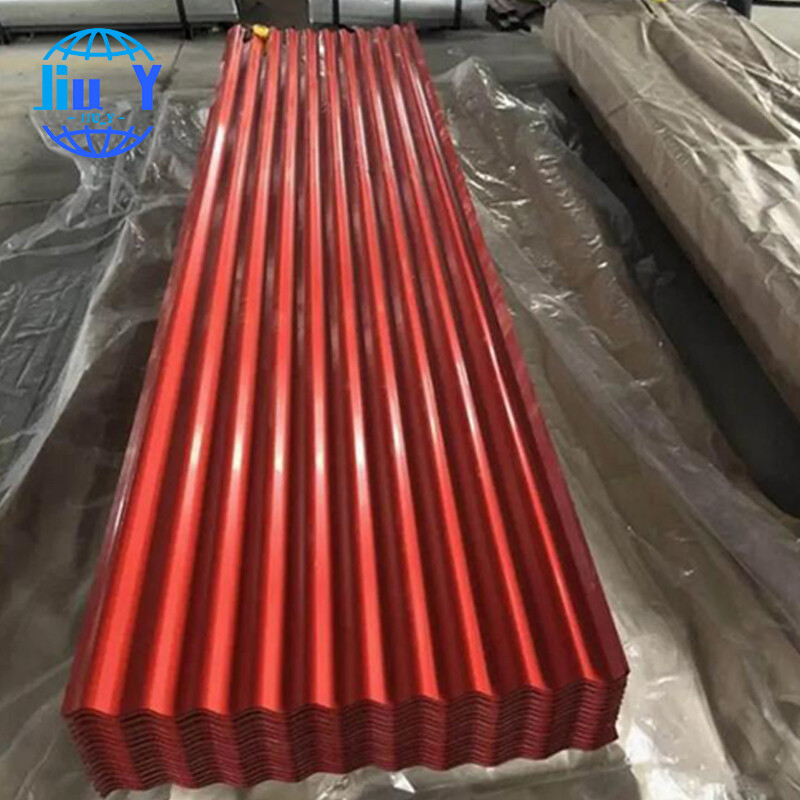

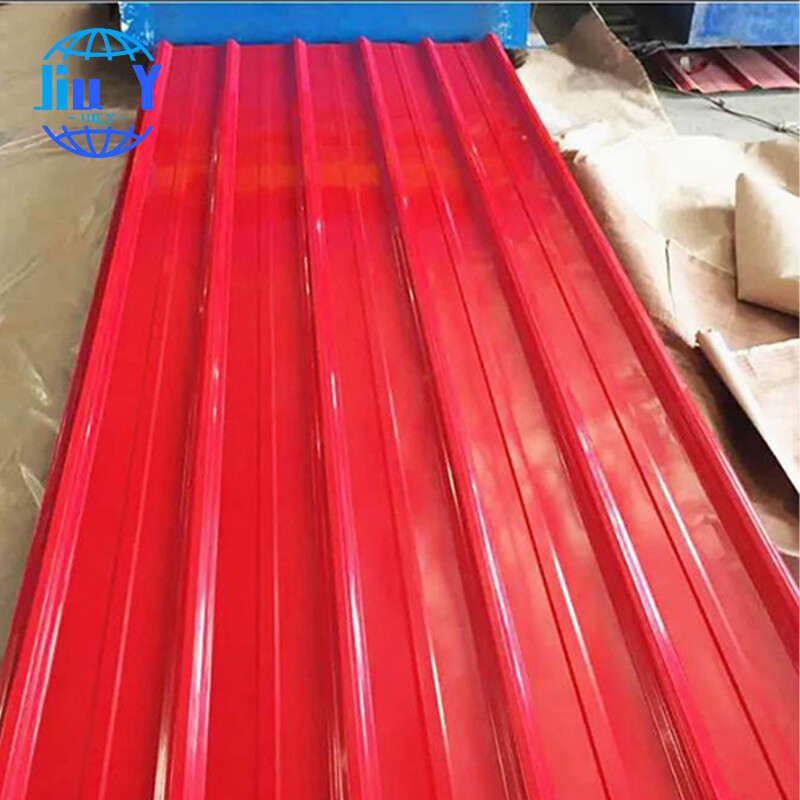

Roof sheet

Product Parameters

Name	Roof Sheet
Type of substrate	Hot dip galvanized, Galvalume, Electro galvanized,Zinc alloy, Cold rolled steel, Aluminum
Thickness	0.125-2mm
Tolerance	Thickness: ± 0.01mm
Width	600-1250mm ( Normal:1250, 1200,1000,914 mm)
Top Paint	10-25 micron(Normal:10-12mic)
Back paint	5-12 micron(Normal:5-7mic)
Coating	Zn coating	AZ coating
	30-400gsm	30-400gsm
Coil weight	3-5 tons or as your requirement.
Coil ID	508/610 mm
Grade	Galvanized	Galvalume
	SGCC/DX51D+Z, DX52D+Z, SGCD/DX53D+Z,SGCE/DX54D+Z, SGCH.......	DX51D+AZ, DX52D+AZ, DX53D+AZ, DX54D+AZ,SGLCC,SGLCD,SGLC4 40,SGLHC........
Coating type	Top paint: PE, SMP, HDP, PVDF, PU
	Functions: Decorative, Machinability, Weather resistance, Scrath resistance, Stain resistance, Chemical resistance, Adhesion resistance
	Primer paint: Polyurethane, Epoxy, PE
	Functions:Machinability, Corrosive resistance, Adhesion, Scrath resistance
	Back paint: Epoxy, Modified polyester
	Functions: Scrath resistance, Bending adhesion, Corrosive resistance
Type of coating process	Front: Doulbe coated & double drying
	Back: Double coated & double drying, single coated & double drying
	Double coated & double drying is used for corrugated sheet
	Double coated & single drying is for sandwich panel
Packing	Standard export package .Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet.
Application	Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings

Product Description

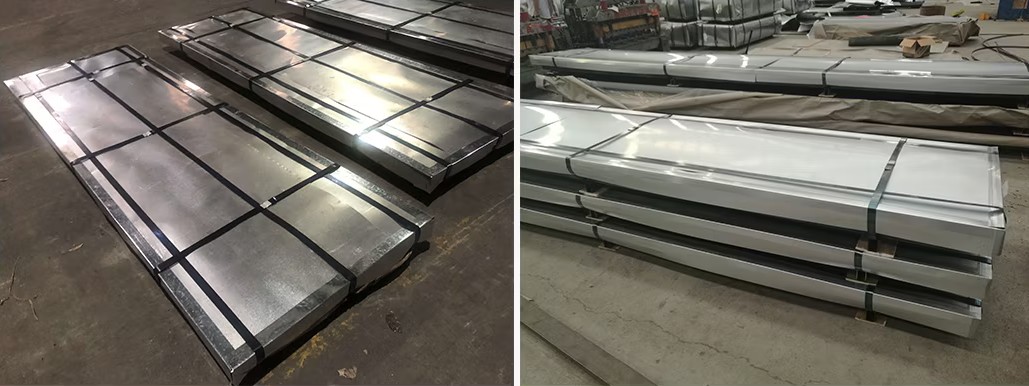

Packaging and transportation
