Wuxi Jiuyuanqiang Metal Manufacturing Co., Ltd.

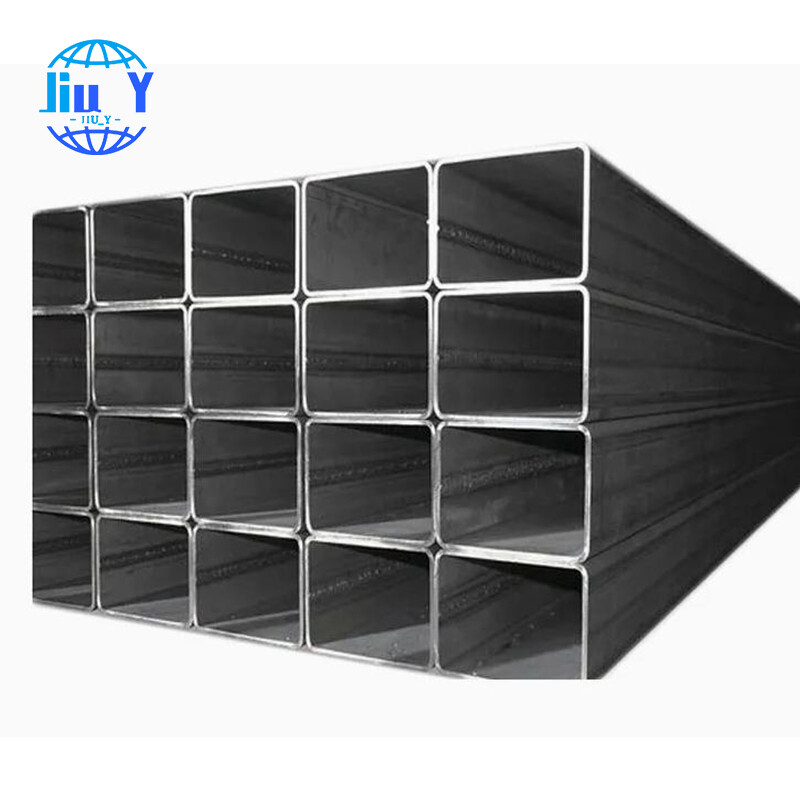

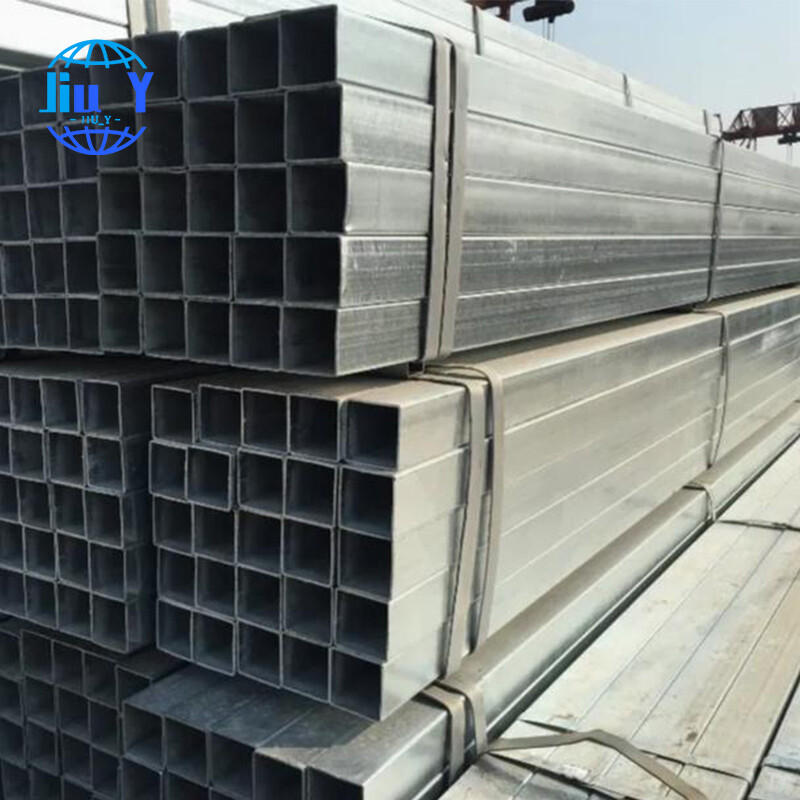

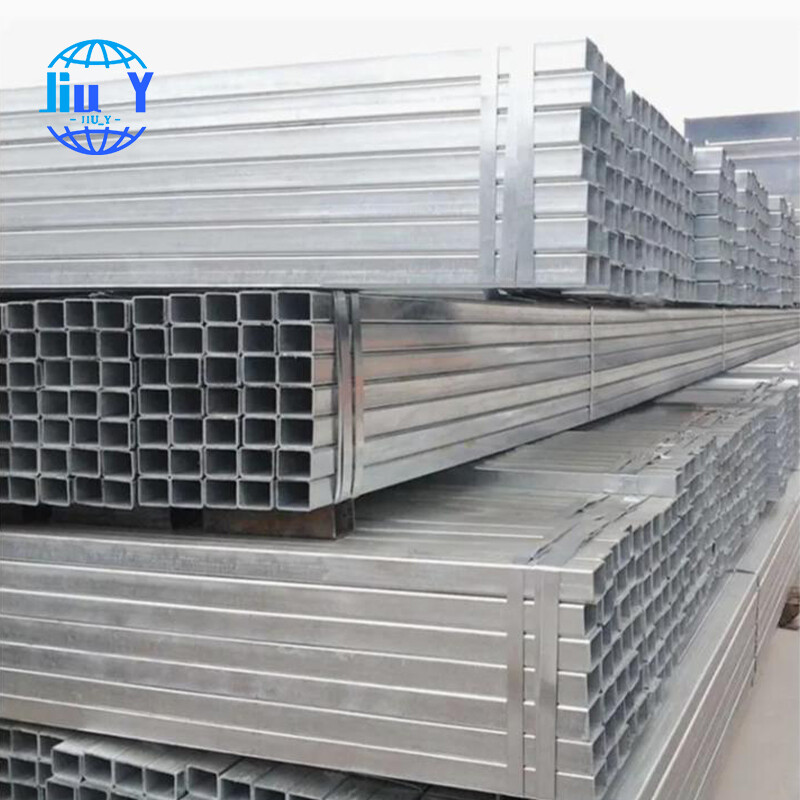

Galvanized rectangular tube

Product Parameters

Poduct Name	Galvanized Square/Rectangular Pipe
Material	Q195 similar to a283 GR.B, 040a10, ss330
	Q235 similar to a283 GR.D, 080a15,CS type B
	Q345 similar to a737 GR.B, SS400, S235JR
Material Chemical Composition	C	Mn	Si	S	P
	0.06-0.12	0.25-0.50	<=0.30	<=0.050	<=0.045
	Tensile strength: 315-430(Mpa)
	Yield steength:195(Mpa)
	Elongation:33
Shape	Square / Rectangular

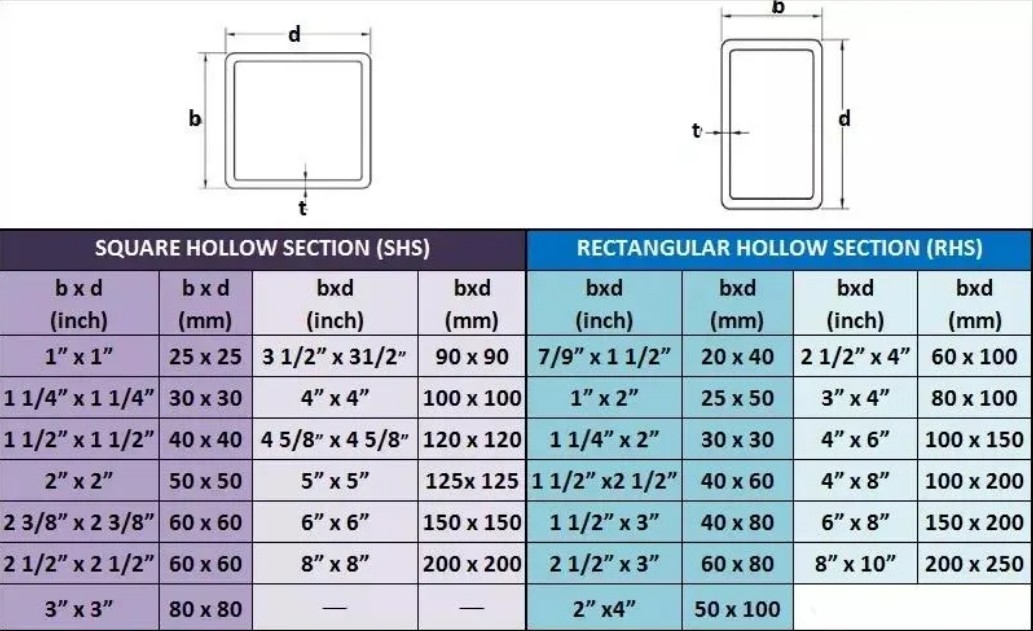

Outer Dia(mm)	1515mm-10001000mm / 1020mm-700300mm
Wall Thickness(mm)	0.6-25mm
Length	5.8m-12m
Surface Treatment	1)Black,Pre-galvanized
	2)oiled,powder coating
	3)Galvanized as your requirement
	PS:Pre galvanized steel pipe: 60-150g/m2;Hot dipped galvanized steel pipe: 200-400g/m2
End Finish	Plain/ beveled ends or threaded with sockets/coupling and plastic caps.
Packaging	Packing in bundle with steel strips; with seaworthy package at the end; could be done with your requirement.
Inspection	With Chemical Composition and Mechanical Properties Testing; Hydrostatic Test, Dimensional and Visual Inspection, With Nondestructive Inspection
Application	construction pipe, machine structure pipe, agriculture equipment pipe, water and gas pipe, Greenhouse pipe, Building material, Furniture tube, Low pressure fluid tube, etc

Product Description

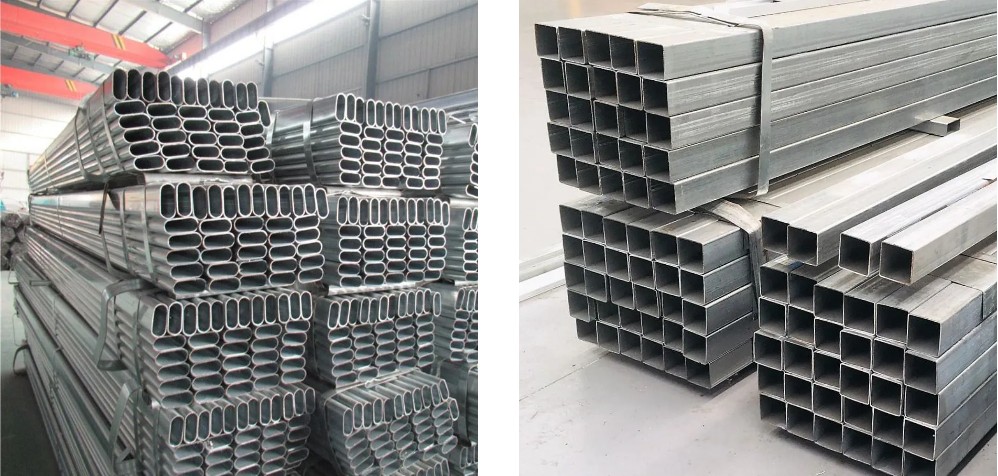

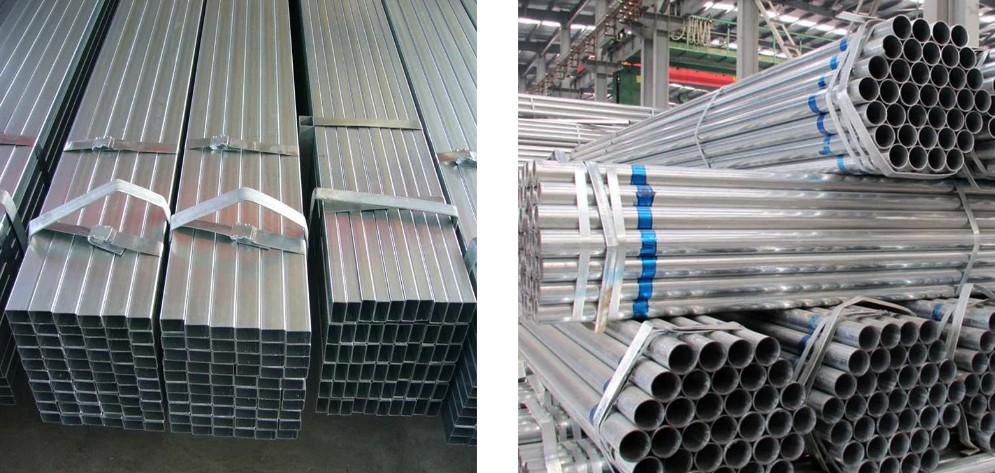

Packaging and transportation
