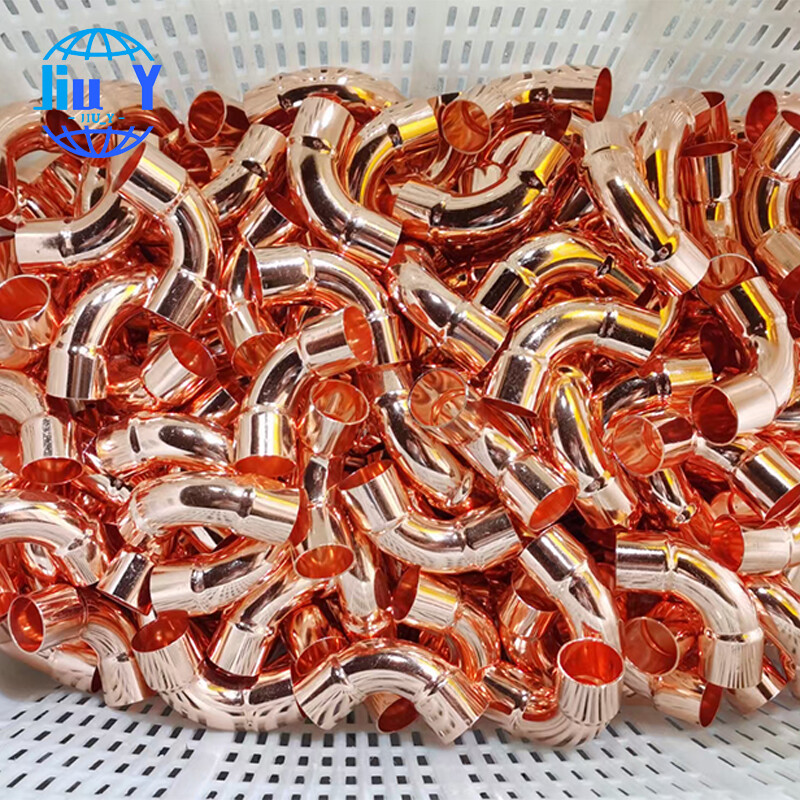

Copper elbow

+86 18915287026

+86 18915287026

+86 18915287026

sales@jyqstainless.com

Product Parameters

Nominal Size	Male End (inch)			Female End (inch)			Wall Thickness(inch)
	Outside Diameter		Length	Inside Diameter		Depth	Wall Thickness(inch)
	Min.	Max.	Min.	Min.	Max.	Min.	Min.
1/4"	0.373	0.376	0.38	0.377	0.381	0.31	0.023
3/8"	0.497	0.501	0.44	0.502	0.506	0.38	0.026
1/2"	0.622	0.626	0.56	0.627	0.631	0.50	0.029
5/8"	0.747	0.751	0.69	0.752	0.756	0.62	0.031
3/4"	0.872	0.876	0.81	0.877	0.881	0.75	0.033
1"	1.122	1.127	0.97	1.128	1.132	0.91	0.040
1-1/4"	1.372	1.377	1.03	1.378	1.382	0.97	0.044
1-1/2"	1.621	1.627	1.16	1.628	1.633	1.09	0.051
2"	2.121	2.127	1.41	2.128	2.133	1.34	0.059
2-1/2"	2.621	2.627	1.53	2.628	2.633	1.47	0.067
3"	3.121	3.127	1.72	3.128	3.133	1.66	0.075
3-1/2"	3.621	3.627	1.97	3.628	3.633	1.91	0.086
4"	4.121	4.127	2.22	4.128	4.133	2.16	0.096

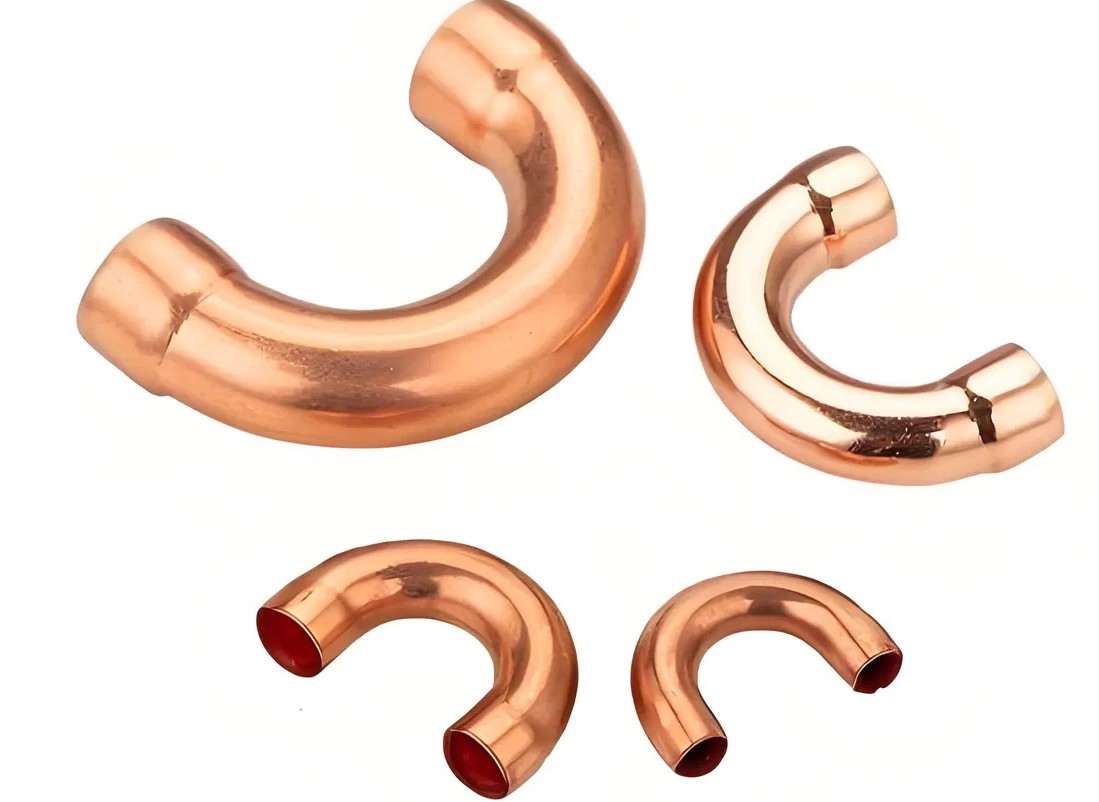

Product Description

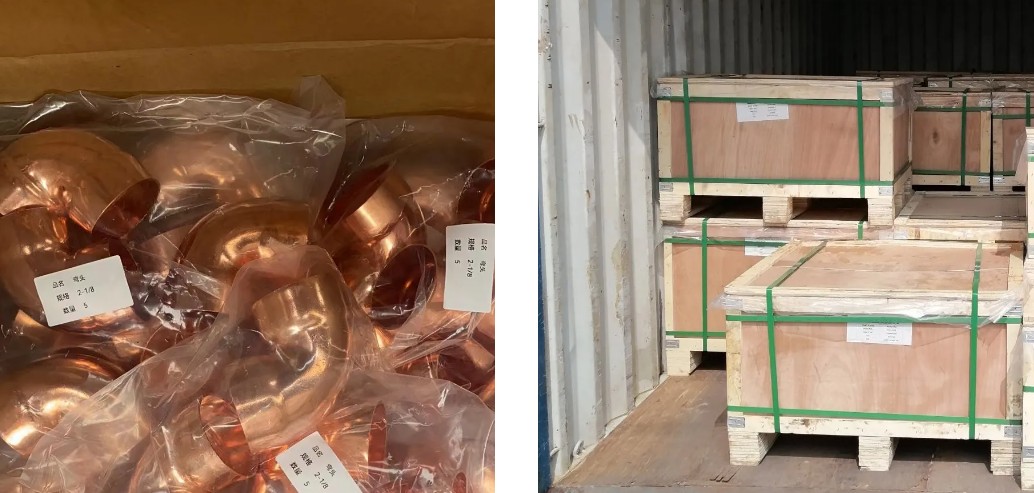

Packaging and transportation

Online Consultation

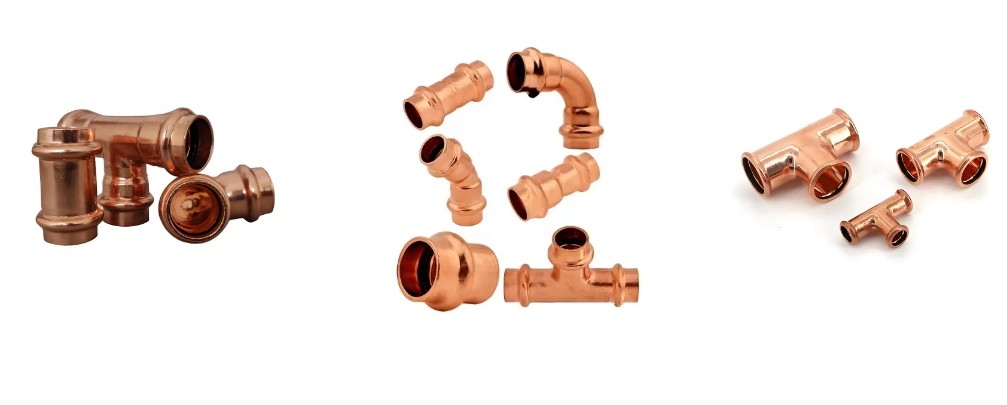

Related Suggestion
